- Firmware: BLHeli_32, Working voltage: DC 7V-25.2V(2-6S Lipo), Constant current: 70A, Peak current: 110A
- BEC supports adjustable output: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A. Can directly supply power to external devices such as receivers and servos.
- SEQURE 2670 brushless esc supports reverse, towards, brake.
- Adopts 32-bit high performance processor STM32G071. Operating frequency could up to 64MHz. Supports 128KHZ PWM frequency.
- Automatically detects the throttle signal, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
- Low voltage protection, Over-heat protection, Locked rotor protection, current protection, etc.
- supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.

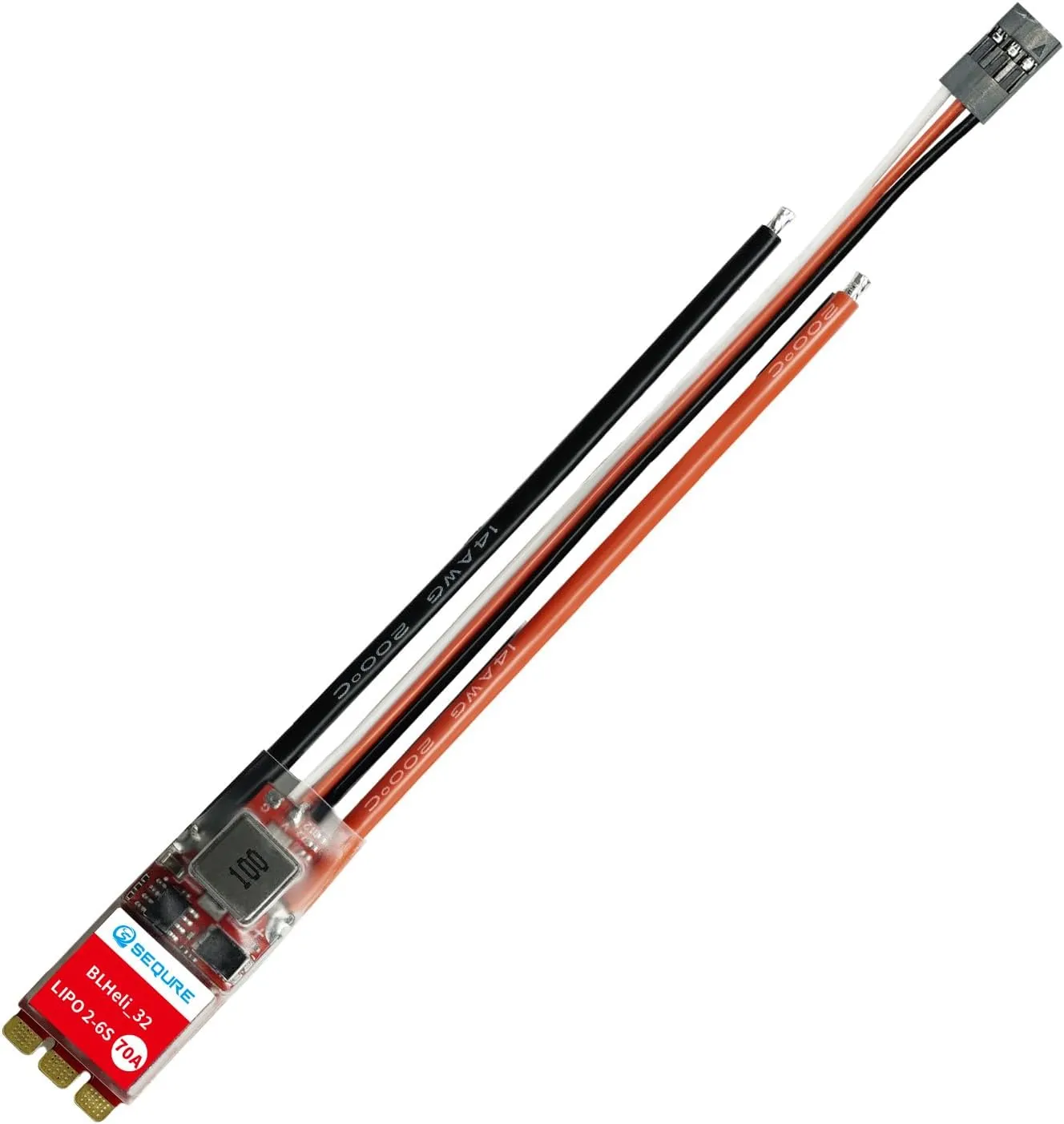

SQESC 2670 Brushless ESC BLHeli_32 Electronic Speed Controller 2S-6S Lipo
Technical Parameters
Model Name: SQESC 2670
Processor: STM32G071
Firmware: BLHeli_32
Input Voltage: DC 7V-25.2V(2-6S Lipo)
Constant Current: 70A
Maximum Current: 110A
BEC Output: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A
Signal Protocols: Dshot (All), PWM, Oneshot, Multishot, etc.
Programmable parameter adjustments: Yes
Steering Setting of the Motor: Yes
Accelerator calibration: Yes
Boost Timing Setting: Yes
Current Detection: Yes
Telemetry signal: Yes
RGB LED Light: Yes
Features:
PCB adopts an 8-layer 3OZ immersion gold process, high-power MOS combined with a metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.
Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal, and other settings.
Onboard RGB LED color light settings, multiple LED colors can be customized.
Widely used in FPV racing drones,multi-axis drones, fixed-wing, ship models, climbing vehicles, car models, and other scenarios
NOTE:
If you need to configure the parameters, please use the ESC-Link configuration tool to change the parameters. ESC-Link is compatible with AM32 and BLHeli_32.
