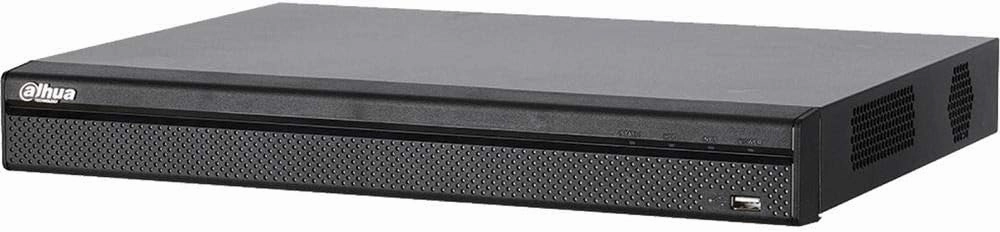

- 8-channel 4K Network Video Recorder
- Up to 8 MP Resolution for Preview and Playback
- Simultaneous HDMI and VGA Video Output Support for IPC and UPnP Protocols
- Eight (8) PoE Ports Support for Automatic Network Replenishment (ANR) Technology
- H.265 and H.264 Video Compression Maximum 200 Mbps Incoming Bandwidth
System Main Processor Embedded Quad-core Processor Operating System Embedded Linux Audio and Video IP Camera Input Eight (8) Channels Two-way Talk Input: One (1) Channel, RCA Output: One (1) Channel, RCA Display Interface One (1) HDMI One (1) VGA Native Output Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 Multi-screen Display 1/4/8/9 On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording Recording Compression H.265, H.264, MJPEG Supported IP Camera Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, CIF, Maximum Incoming Bandwidth 200 Mbps Bit Rate 16 Kbps to 20 Mbps per channel Record Mode Manual, Schedule (Regular, Continuous), Motion Detection (Video Detection, Motion Detection, Tampering, Video Loss), Stop Record Interval 1 to 120 minutes (default: 60 minutes) Pre-record: 1 to 30 s Post-record: 10 to 300 s Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering Alarm Input Four (4) Channels, Low Level Effective, Green Terminal Interface Relay Output Two (2) Channels, NO/NC Programmable, Green Terminal Interface Playback and Backup Sync Playback 1/4/8 Search Mode Time/Date, Alarm, MD and Exact Search (accurate to one second), Smart Search Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device, Network Ethernet One (1) RJ-45 Port (10/100/1000 Mbps) PoE Eight (8) Ports (IEEE802.3af/at) Network Function (Support for Dahua IP cameras, DVRs, NVS) Maximum User Access 128 Users Mobile Operating System IOS, Android Interoperability ONVIF 2.4, CGI Conformant
