- 【Replace Part Number】: For Curtis 1205, 1204, 1205-117, 1205-101, 1205-112, 1205-113, 1205-121, 1205-103 EZGO Golf Cart Speed Controller, Thoroughly Tested Before Shipping, Premium Quality Guaranteed.
- 【Fitment】: This golf cart controller fits Club Car DS (Years 1991-Up).

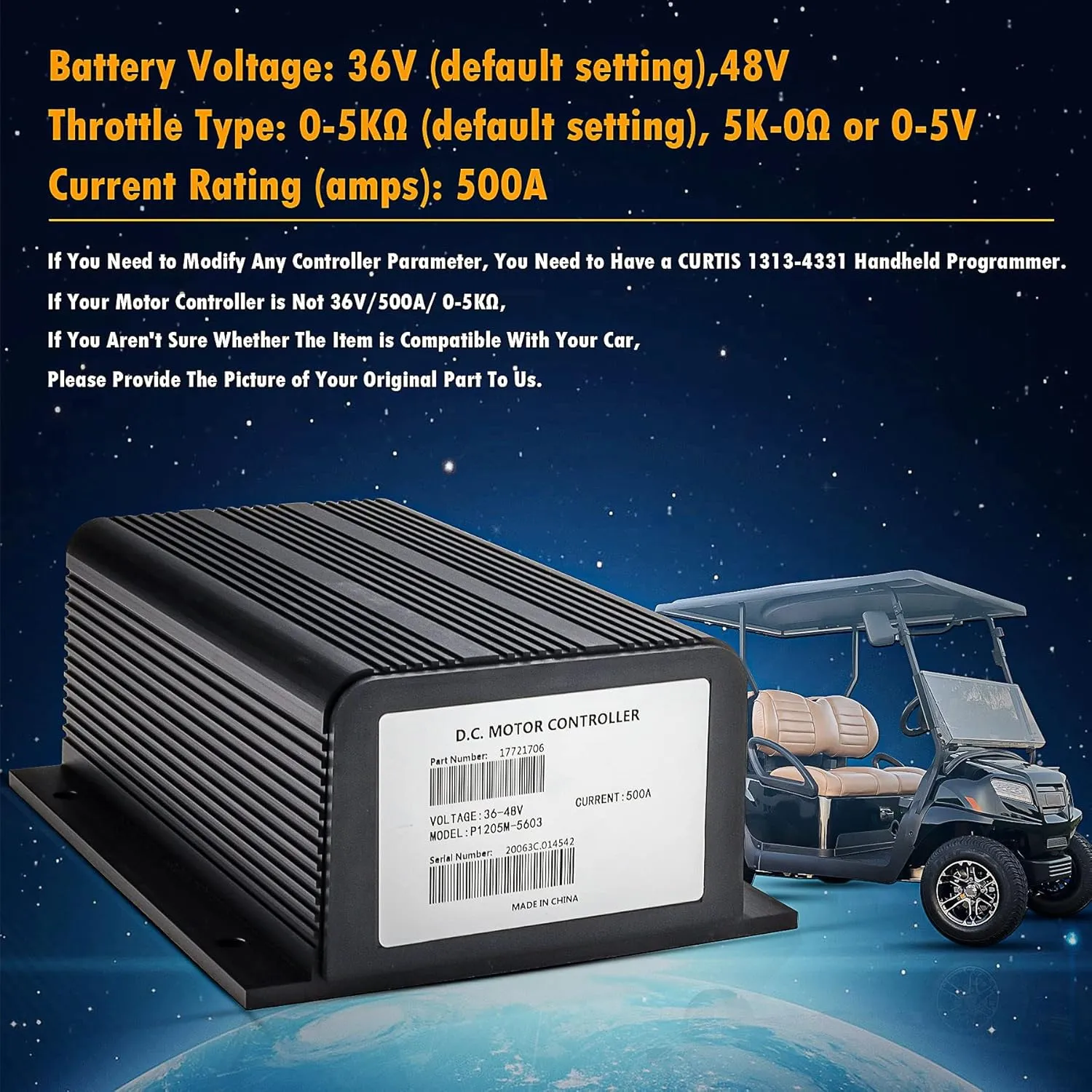

- 【Nominal Battery Voltage (Volts)】: Factory-set at 36V for instant use. Also easily adjustable to 48V with a 1313 programmer (sold separately). By default, we will ship the controller with the default setting of 36V / 500A / 0-5kΩ (Throttle Type = "0").

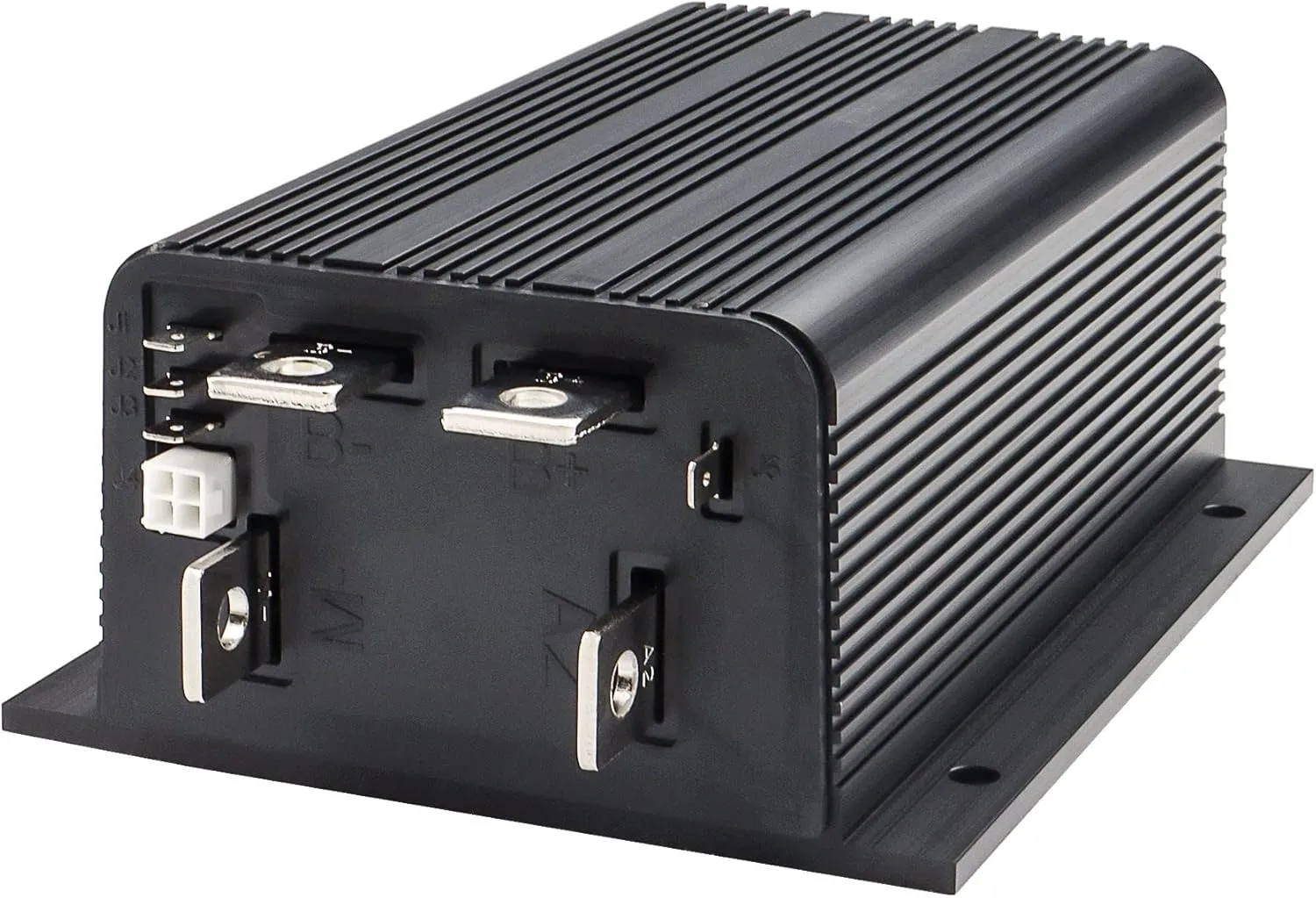

- 【Features】: The Replacement of Curtis (1205) 500 Amp, 36-48 Volt Long Body Controller with Four Buss Bars is Pre-set for 0-5k Throttle. It Can Be Adjusted with a Hand Held Curtis Programmer #1313-3301 for Use with 8 Other Throttle Inputs. Many Other Parameters Such As Acceleration, HPD, Voltage, Plugging and More Are Also Adjustable.
- 【Note】: In Order To Avoid Unnecessary Return, Please Refer to Your Own Part and Make Sure Your Part is 36V, 500A, 0-5KΩ, By default, the controller’ setting is 36V, 500A , 0-5KΩ. 400A 325A 275A Controller is also Compatible with This Controller.
Overview:
The 1205 programmable series motor controller is preset for 36 Volt / 0-5KΩ, and thus will not work on 24 or 48 volts, or other throttle types apart from 0-5KΩ. However, it can be adjusted with a CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station for use with 48 voltage. Please note that 24V compatibility remains unavailable.
This 1205 controller are also compatible with Curtis 1205 / 1205-117 / 1205-101 / 1205-112 / 1205-113 / 1205-121 / 1205-103 when the voltage and throttle type are 36V and 0-5K (Throttle Type = "0").
Note: By default, the J5 terminal of the new 1205M controllers is not activated. The controller wiring is the same as the old 1205M controllers without a J5 terminal.
Key Features: For CURTIS 1205-117 36V Controller
- Nominal Battery Voltage (Volts): 36V (default and preset setting for instant use) or 48V ( adjustable with a 1313 programmer to set)
- Fitment: Compatible with 1991-up EZGO Golf Cart
- Dimensions: L199xW146xH77 mm
- Net Weight: 2.7 kg
- Ten throttle types can be used with the controllers (adjustable with a1313 programmer):
Type 0: 2-wire potentiometer, 0–5kΩ (default and already preset setting for instant use);
Type 1: 2-wire potentiometer, 5kΩ–0;
Type 2: single-ended 0–5V input;
Type 3: 2-wire potentiometer, 4.6kΩ–0;
Type 4: 2-wire potentiometer, 5.5kΩ–0;
Type 5: 2-wire potentiometer, 1kΩ–0;
Type 6: ITS input;
Type 7: single-ended 6.3–10.6V input;
Type 8: single-ended 6–12V input;
Type 9: single-ended 3-wire potentiometer, 0–5kΩ
If You Aren't Sure Whether The Item is Compatible With Your Car, Please Contact us - we'll reply within 24 hours.
