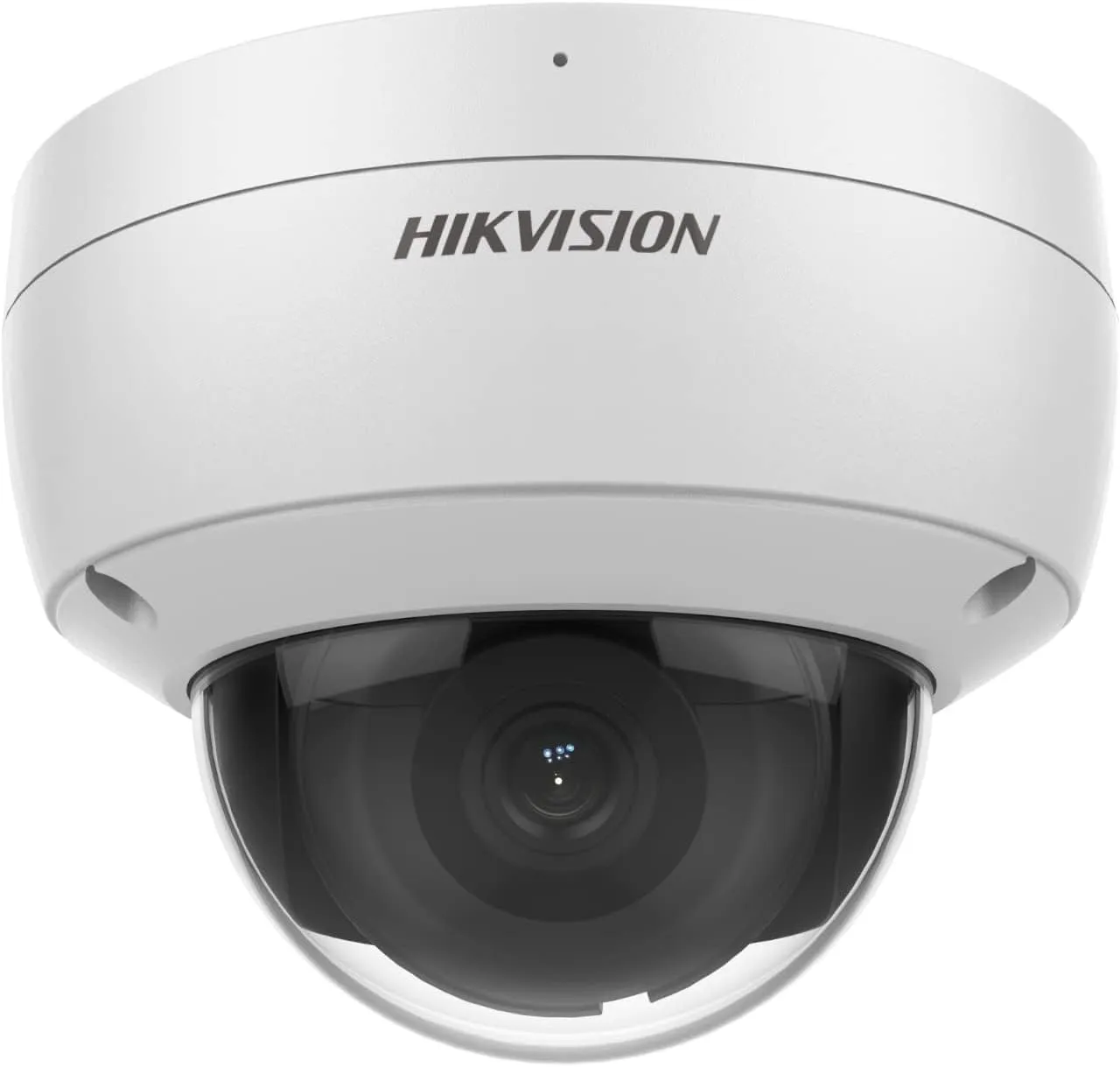

- International Version Model: DS-2CD2183G2-IU 2.8mmLens, (Hik/vision)imported with original packaging with LOGO. We have live people for tech support in US. If you have any issue, please feel free to contact us at the bottom of the order, and we will arrange a specialist to communicate with you one-on-one within 24 hours,we offer a 100% satisfaction guarantee!
- Compatible Hik/vision 4K camera,which has a 107° field of view ensures wide coverage for enhanced security. Built-in microphone for real-time audio security,support Mono sound Audio. Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB.
- Human/Vehicle Detection with Smart Alerts: This Security camera can identify people and vehicles in terms of their shapes, which minimizes unnecessary alarms such as animals or shadows. Get alerts on your smartphone whenever motion is detected or customize motion detection zones so you can see what matters most.
- Faster and Simplified PoE Installation,Thanks to the power over Ethernet (PoE) technology, this PoE camera can transmit videos and get power via only one network cable. You can install this security camera quickly and easily for a reliable connection. (No Power Adapter Included). This Network Surveillance Camera boasts Water and dust resistant (IP67) and vandal-resistant (IK10), and a robust metal housing, ensuring reliable performance outdoors.
- This Dome Camera is easy to operate, just download the tool SADP to remotely set up your camera, or use a mobile app for remote control, supporting client has iVMS-4200, Hik Connect, Hik Central. The surveillance camera isupport Easy Plug and Play NVR,compatible with Hik/vision NVR or the most third-party On/vif NVR. User/Host support Up to 32 users(3 user levels: administrator, operator, and user).
Camera
Image Sensor:1/2.8" Progressive Scan CMOS
Max. Resolution:3840 × 2160
Min. Illumination:Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time:1/3 s to 1/100,000 s
Day & Night:IR cut filter
Angle Adjustment:Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type:Fixed focal lens, 2.8
Focal Length & FOV:2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
Lens Mount:M12
Iris Type:Fixed
Aperture:F1.6
DORI:2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
Illuminator
Supplement Light Type:IR
Supplement Light Range:Up to 30 m
Smart Supplement Light:Yes
IR Wavelength:850 nm
Video
Main Stream:50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
Video Bit Rate:32 Kbps to 16 Mbps
H.264 Type:Baseline Profile,Main Profile,High Profile
H.265 Type:Main Profile
Bit Rate Control:CBR,VBR
Scalable Video Coding (SVC):H.264 and H.265 encoding
Video Compression:Main stream: H.265 /H.265/H.264 /H.264
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Region Of Interest (ROI):1 fixed region(s) for main stream and sub-stream
Audio
Audio Type:Mono sound
Audio Compression:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering:Yes
Network
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View:Up to 6 channels
API:Open Network Video Interface (Profile S, Profile G),ISAPI,SDK
User/Host:Up to 32 users;3 user levels: administrator, operator, and user
Security:Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage:NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) Client:iVMS-4200,Hik-Connect,Hik-Central
Web Browser:Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0 , Firefox 52.0 ,Local service: Chrome 57.0 , Firefox 52.0
Image Parameters Switch:Yes
Image Settings:Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch:Day,Night,Auto,Schedule
Wide Dynamic Range (WDR):120 dB
SNR:≥ 52 dB
Image Enhancement:BLC,HLC,3D DNR
Privacy Mask:4 programmable polygon privacy masks
Interface
Ethernet Interface:1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage:Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone:Yes
Reset Key:Yes
Event
Basic Event:Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event:Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
Linkage:Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
General
Power:12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Dimension:4.8 × 3.6"
Package Dimension:5.9" × 5.9" × 5.6"
Weight:1.2 lb.
With Package Weight:1.8 lb.
Storage Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language:33 languages
General Function:Heartbeat,anti-flicker,password reset via email,pixel counter
Protection:IP67: IEC 60529-2013;IK10: IEC 62262:2002
