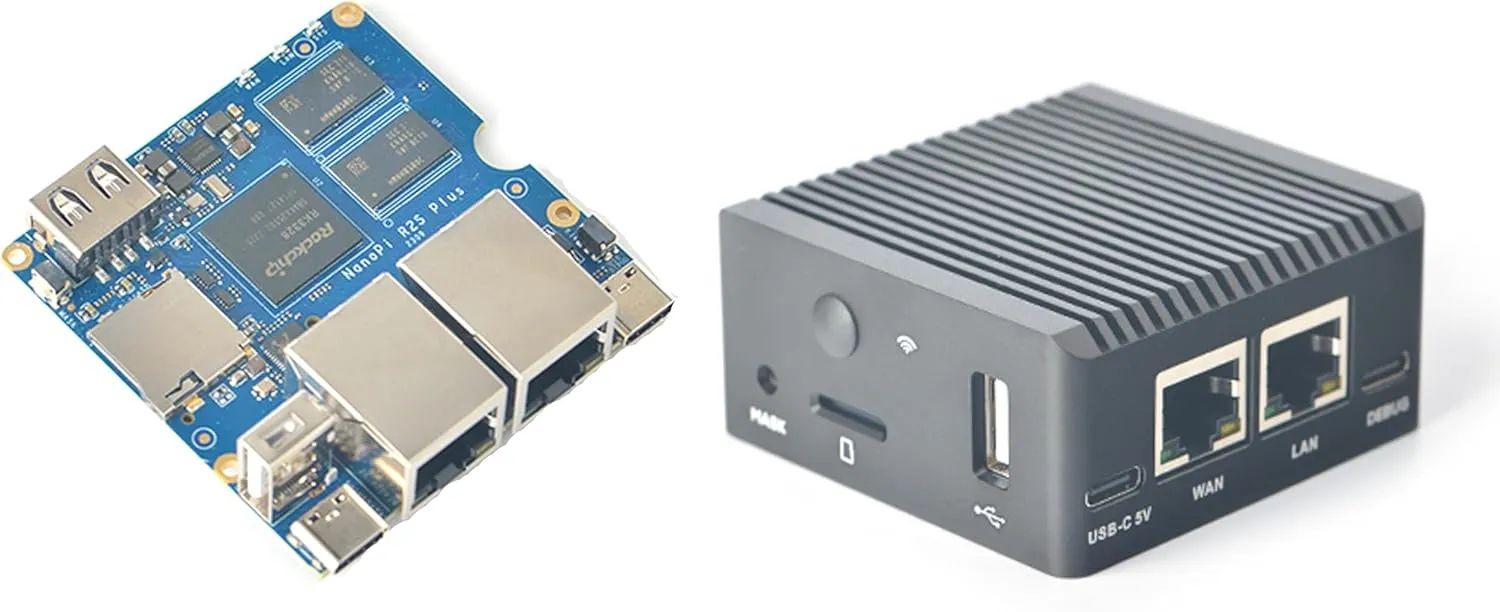

- [Rockchip RK3328 SoC] The NanoPi R2S Plus Mini Router uses the Rockchip RK3328 SoC with Quad-core Cortex-A53,1GB DDR4 RAM and 32GB eMMC 5.1 Flash; It is an open source platform with dual-Gbps Ethernet ports designed for IoT applications.
- [Easy to Use] NanoPi R2S Plus Router was ported an OpenWrt system. You can easily make it a router by simpy applying simple configuration.
- [Smooth and Elegant] NanoPi R2S Plus has two Gbps Ethernet ports ,Up to 941 mbits/second download and upload.Sufficient for running various application.
- [OpenWrt system] NanoPi R2S Plus ported an OpenWrt system. It works with Docker. It is a good platform for developing IoT applications, NAS applications, smart home gateways etc.
- Wiki: Getting Started: "wiki.friendlyelec.com/wiki/index.php/NanoPi_R5S#Get_Started"; Pls feel free to contact us to get the Datasheet or any questions of this module after you purchased it. How to contact us? Click "WayPonDEV" and ask a question.
-Specification-
CPU: Rockchip RK3328, Quad-core Cortex-A53
DDR4 RAM: 1GB
Flash: 32GB eMMC 5.1 Flash
Network：
Internal 10/100/1000M Ethernet Port x 1
USB3.0 converted 10/100/1000M Ethernet Port x 1
USB2.0 Host: Type-A x1
MicroSD Slot x 1
MicroUSB: power input and USB Slave
Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds
LED: LED x 3
KEY: KEY x 1 programmable
PC Size: 57.5 x 54.3mm
Power Supply: DC 5V/2A
Temperature measuring range: 0℃ to 80℃
OS/Software: U-boot，Ubuntu-Core，OpenWrt
-Package Content-
1 x NanoPi R2C Plus Combo (with CNC Metal Case)
1 x USB-C Cable (Max Current: 3A / Length: 30cm)
