- PROTECTS HDMI EQUIPMENT: Safeguards your HDMI connected equipment from damage caused by power surges and electrostatic discharge (ESD). Ideal for home theaters, gaming consoles, and professional AV setups. Meets rigorous IEC 61000 standards.
- RELIABLE PERFORMANCE: Supports UHD resolutions up to 4K @ 60 Hz, ensuring crystal-clear video quality. Built to last with high-quality components, providing long-term protection and peace of mind for your valuable HDMI equipment.
- EASY INSTALLATION: Simply connect the surge protector between your HDMI source and display and connect the grounding wire to a grounding location (screw included). No software or drivers required, making setup hassle-free.
- OPTIMAL LIGHTNING PERFORMANCE: For optimal performance, the distance between the B110-SP-HDMI-1 and the HDMI equipment to be protected should not exceed 15 feet. Two B110-SP-HDMI-1 surge protectors are required to protect both source and display.
- RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a manufacturer's 2-Year Limited Warranty and is supported by Eaton's expert technical support team over phone and email.

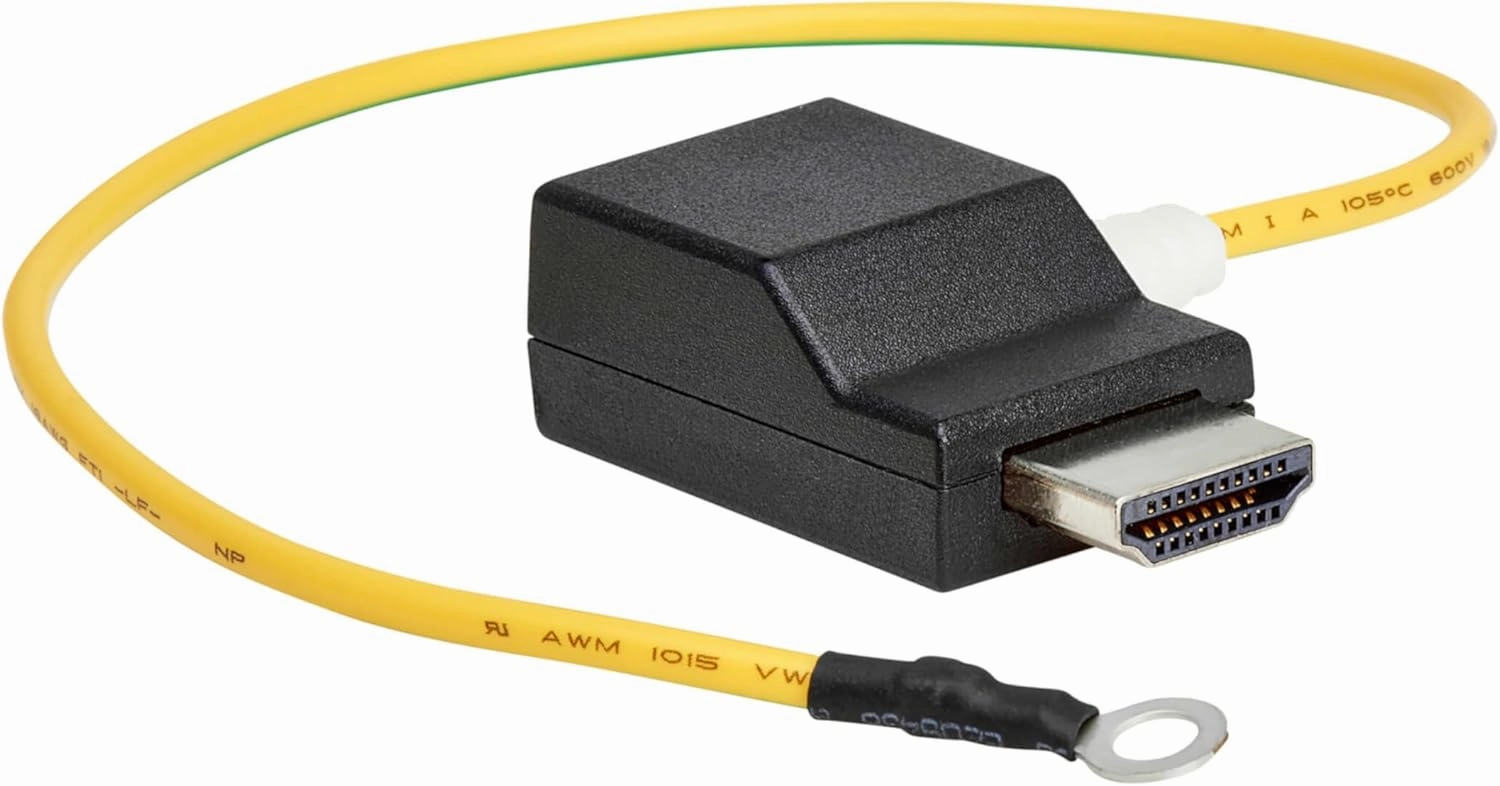

In-Line Surge Protector Keeps Your HDMI Source or Display Safe
Ideal for trade shows, convention halls, home theaters and other digital signage applications, the B110-SP-HDMI-1 protects connected equipment from damage caused by power surges and electrostatic discharge (ESD). Just connect it between your source (media server, cable/satellite box, etc.) and display (HDTV, monitor, projector) using HDMI cables (such as P568-003-Series cables, sold separately). Note: Two B110-SP-HDMI-1 surge protectors are required to protect both source and display.
Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Low TDMS (Transition Minimized Differential Signaling) loss ensures you get the crispest and cleanest image on your display without any interference, including static lines. The B110-SP-HDMI-1 meets the following IEC regulations: IEC 61000-4-2 (ESD) /- 15kV (air), /- 8kV (contact); IEC 61000-4-4 (EFT) 40A (5/50ns); and IEC 61000-4-5 5A (8/20μs).
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The B110-SP-HDMI-1 supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. It is a passive design and requires no software or external power supply. The compact housing is designed to endure in applications where static discharge is likely to occur.
TAA-Compliant for GSA Schedule Purchases
The B110-SP-HDMI-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
